AD9747BCPZ 14-Bit 2.5 GSPS High-Speed DAC with Low Power LVDS Inputs Excellent SFDR Flexible Clocking Wide Bandwidth & Industrial Temp Range
FEATURES
High dynamic range, dual DACs
Low noise and intermodulation distortion
Single carrier WCDMA ACLR = 80 dBc at 61.44 MHz IF
Innovative switching output stage permits useable outputs beyond Nyquist frequency
LVCMOS inputs with dual-port or optional interleaved single-port operation
Differential analog current outputs are programmable from 8.6 mA to 31.7 mA full scale
Auxiliary 10-bit current DACs with source/sink capability for external offset nulling
Internal 1.2 V precision reference voltage source
Operates from 1.8 V and 3.3 V supplies
315 mW power dissipation
Small footprint, Pb-free, 72-pin LFCSP
APPLICATIONS
Wireless infrastructure: WCDMA, CDMA2000, TD-SCDMA, WiMAX
Wideband communications: LMDS/MMDS, point-to-point
Instrumentation: RF signal generators, arbitrary waveform generators
GENERAL DESCRIPTION
The AD9741/AD9743/AD9745/AD9746/AD9747 are pin compatible, high dynamic range, dual digital-to-analog converters (DACs) with 8-/10-/12-/ 14-/16-bit resolutions and sample rates of up to 250 MSPS. The devices include specific features for direct conversion transmit applications, including gain and offset compensation, and they interface seamlessly with analog quadrature modulators, such as the ADL5370.
A proprietary, dynamic output architecture permits synthesis of analog outputs even above Nyquist by shifting energy away from the fundamental and into the image frequency. Full programmability is provided through a serial peripheral interface (SPI) port. In addition, some pin-programmable features are offered for those applications without a controller.
PRODUCT HIGHLIGHTS
Low noise and intermodulation distortion (IMD) enables high quality synthesis of wideband signals.
Proprietary switching output for enhanced dynamic performance.
Programmable current outputs and dual auxiliary DACs provide flexibility and system enhancements.
INFORMATION
| Category | | |
| Manufacturer | | |
| Series | | |
| Packaging | | |
| Part Status | | |
| DigiKey Programmable | | |
| Number of Bits | | |
| Number of D/A Converters | | |
| Settling Time | | |
| Output Type | | |
| Differential Output | | |
| Data Interface | | |
| Reference Type | | |
| Voltage - Supply, Analog | | |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V | |
| INL/DNL (LSB) | | |
| Architecture | | |
| Operating Temperature | | |
| Package / Case | 72-VFQFN Exposed Pad, CSP | |
| Supplier Device Package | | |
| Mounting Type | | |
| Base Product Number | |

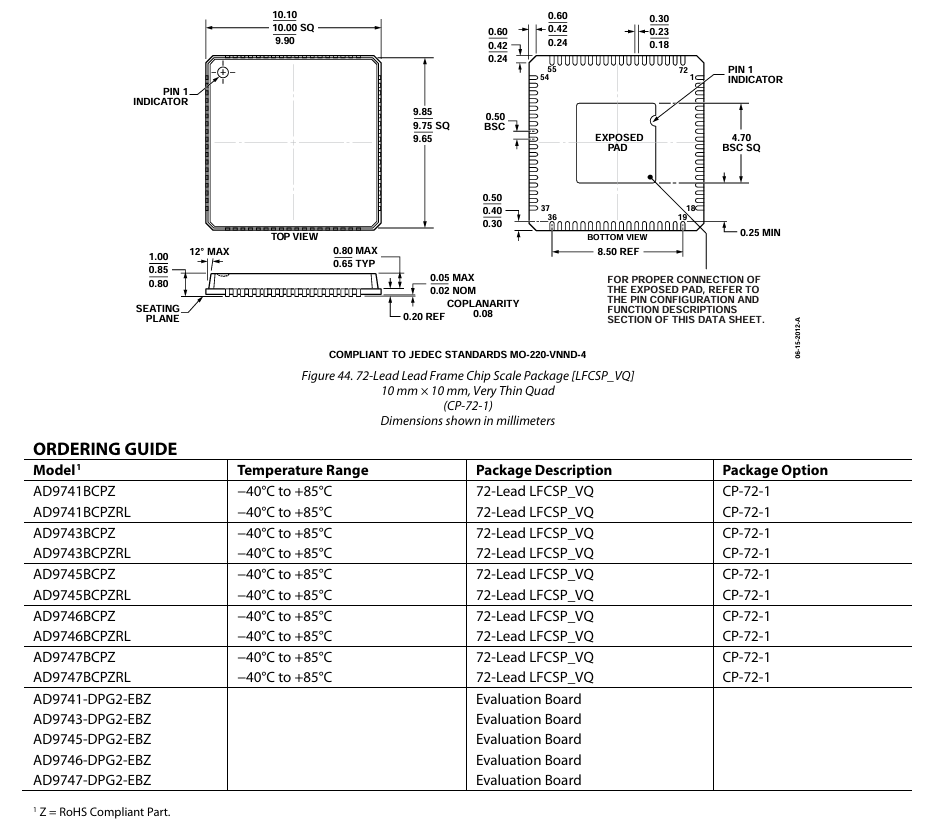

Drawing
