IPA60R360P7SXKSA1 600V CoolMOS™ 360mΩ RDS(on) 11A Current Ultra-Low Switching Losses High Efficiency Robust ESD Protection TO-220 Package for SMPS & Industrial Apps
Features
•Suitableforhardandsoftswitching(PFCandLLC)duetoanoutstanding commutationruggedness
•Significantreductionofswitchingandconductionlosses
•ExcellentESDrobustness>2kV(HBM)forallproducts
•BetterRDS(on)/packageproductscomparedtocompetitionenabledbya lowRDS(on)*A(below1Ohm*mm²)
Benefits
•Easeofuseandfastdesign-inthroughlowringingtendencyandusage acrossPFCandPWMstages
•Simplifiedthermalmanagementduetolowswitchingandconduction losses
•Increasedpowerdensitysolutionsenabledbyusingproductswith smallerfootprintandhighermanufacturingqualitydueto>2kVESD protection •Suitableforawidevarietyofapplicationsandpowerranges
Potentialapplications
PFCstages,hardswitchingPWMstagesandresonantswitchingstages fore.g. PCSilverbox,Adapter,LCD&PDPTV,Lighting,Server,Telecom andUPS.
Productvalidation
QualifiedaccordingtoJEDECStandard
MOSFET
600V CoolMOSª P7 Power Device
TheCoolMOS™7thgenerationplatformisarevolutionarytechnologyfor highvoltagepowerMOSFETs,designedaccordingtothesuperjunction (SJ)principleandpioneeredbyInfineonTechnologies.The600V CoolMOS™P7seriesisthesuccessortotheCoolMOS™P6series.It combinesthebenefitsofafastswitchingSJMOSFETwithexcellentease ofuse,e.g.verylowringingtendency,outstandingrobustnessofbody diodeagainsthardcommutationandexcellentESDcapability. Furthermore,extremelylowswitchingandconductionlossesmake switchingapplicationsevenmoreefficient,morecompactandmuch cooler.
INFORMATION
| Category | | |
| Mfr | | |
| Series | | |
| Packaging | | |
| Part Status | | |
| FET Type | | |
| Technology | | |
| Drain to Source Voltage (Vdss) | | |
| Current - Continuous Drain (Id) @ 25°C | | |
| Drive Voltage (Max Rds On, Min Rds On) | | |
| Rds On (Max) @ Id, Vgs | | |
| Vgs(th) (Max) @ Id | | |
| Gate Charge (Qg) (Max) @ Vgs | | |
| Vgs (Max) | | |
| Input Capacitance (Ciss) (Max) @ Vds | | |
| FET Feature | | |
| Power Dissipation (Max) | | |
| Operating Temperature | | |
| Grade | | |
| Qualification | | |
| Mounting Type | | |
| Supplier Device Package | | |
| Package / Case | | |
| Base Product Number | |

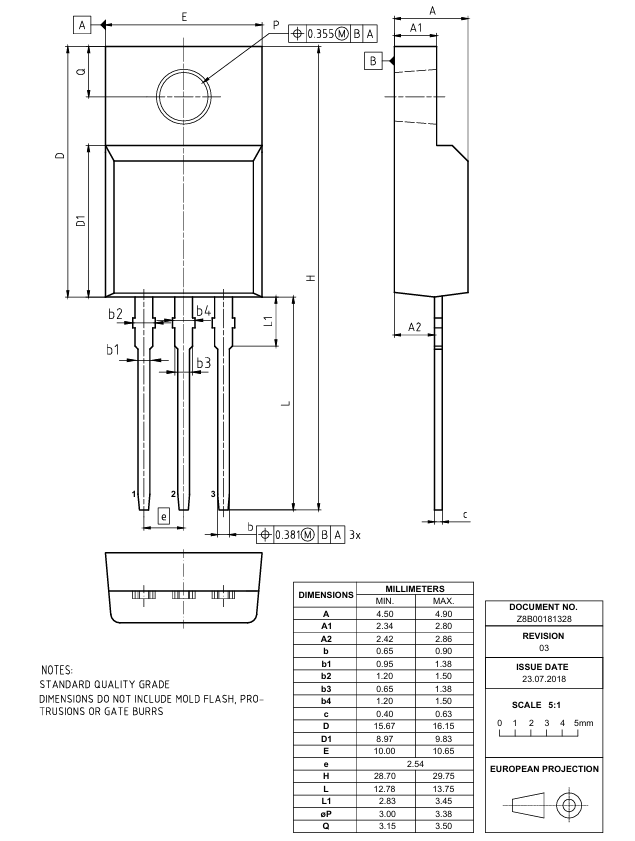

Drawing
----------------------------------------------------------
