AD7705BRZ ADC 16-Bit Precision Low Noise 3V/5V Operation On-Chip Filter SPI Interface Low Power -40°C to +85°C Industrial-Grade
FEATURES
AD7705: 2 fully differential input channel ADCs
AD7706: 3 pseudo differential input channel ADCs
16 bits no missing codes
0.003% nonlinearity
Programmable gain front end: gains from 1 to 128 3-wire serial interface
SPI®-, QSPI™-, MICROWIRE™-, and DSP-compatible
Schmitt-trigger input on SCLK
Ability to buffer the analog input
2.7 V to 3.3 V or 4.75 V to 5.25 V operation
Power dissipation 1 mW maximum @ 3 V
Standby current 8 μA maximum
16-lead PDIP, 16-lead SOIC, and 16-lead TSSOP packages
GENERAL DESCRIPTION

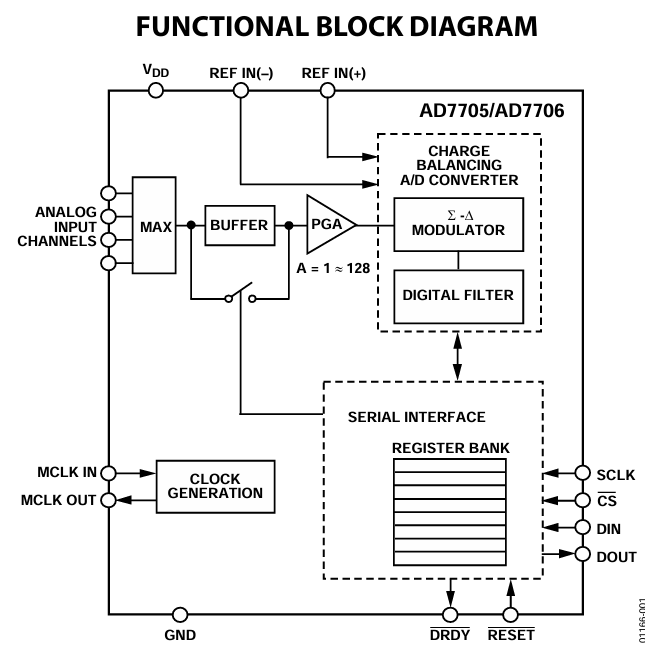

The AD7705/AD7706 are complete analog front ends for low frequency measurement applications. These 2-/3-channel devices can accept low level input signals directly from a transducer and produce serial digital output. The devices employ a Σ-Δ conversion technique to realize up to 16 bits of no missing codes performance. The selected input signal is applied to a proprietary, programmable-gain front end based around an analog modulator. The modulator output is processed by an on chip digital filter. The first notch of this digital filter can be pro grammed via an on-chip control register, allowing adjustment of the filter cutoff and output update rate.
The AD7705/AD7706 devices operate from a single 2.7 V to 3.3 V or 4.75 V to 5.25 V supply. The AD7705 features two fully differential analog input channels; the AD7706 features three pseudo differential input channels.
Both devices feature a differential reference input. Input signal ranges of 0 mV to 20 mV through 0 V to 2.5 V can be incorporated on both devices when operating with a VDD of 5 V and a reference of 2.5 V. They can also handle bipolar input signal ranges of ±20 mV through ±2.5 V, which are referenced to the AIN(−) inputs on the AD7705 and to the COMMON input on the AD7706.
The AD7705/AD7706 devices, with a 3 V supply and a 1.225 V reference, can handle unipolar input signal ranges of 0 mV to 10 mV through 0 V to 1.225 V. The devices can accept bipolar input ranges of ±10 mV through ±1.225 V. Therefore, the AD7705/AD7706 devices perform all signal conditioning and conversion for a 2-channel or 3-channel system.
The AD7705/AD7706 are ideal for use in smart, microcontroller, or DSP-based systems. The devices feature a serial interface that can be configured for 3-wire operation. Gain settings, signal polarity, and update rate selection can be configured in software using the input serial port. The parts contains self-calibration and system calibration options to eliminate gain and offset errors on the part itself or in the system. CMOS construction ensures very low power dissipation, and the power-down mode reduces the standby power consumption to 20 μW typ.
These parts are available in a 16-lead, wide body (0.3 inch), plastic dual in-line package (DIP); a 16-lead, wide body (0.3 inch), standard small outline (SOIC) package; and a low profile, 16-lead, thin shrink small outline package (TSSOP).
Applications
Industrial Process Control
Signal conditioning for pressure/temperature/flow sensors
4-20mA current loop measurement.
Analog input modules for PLC systems
Medical & Health Devices
Portable medical instruments (glucometers, blood pressure monitors)
Bioelectric signal acquisition (EEG/ECG)
Smart Instrumentation
High-precision electronic scales (0.01g resolution)
Laboratory analysis equipment0
Gas detectors
consumer Electronics
High-end smart home sensors0
Fitness equipment biometric monitoring
Automotive Electronics
Battery Management System (BMS) voltage monitoring
Engine parameter acquisition
INFORMATION
| Category | | |
| Manufacturer | | |
| Series | | |
| Packaging | | |
| Part Status | | |
| Number of Bits | | |
| Sampling Rate (Per Second) | | |
| Number of Inputs | | |
| Input Type | | |
| Data Interface | | |
| Configuration | | |
| Ratio - S/H:ADC | | |
| Number of A/D Converters | | |
| Architecture | | |
| Reference Type | | |
| Voltage - Supply, Analog | | |
| Voltage - Supply, Digital | | |
| Features | | |
| Operating Temperature | | |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | | |
| Mounting Type | | |
| Base Product Number | |
