TUSB8041IRGCR 4-Port USB 3.0 Hub with 5Gbps Speed Low Power Compact QFN Industrial Temp ESD Protection & Plug-and-Play

TUSB8041IRGCR 4-Port USB 3.0 Hub with 5Gbps Speed Low Power Compact QFN Industrial Temp ESD Protection & Plug-and-Play

Features

• Four Port USB 3.0 Hub

• USB2.0 Hub Features– Multi Transaction Translator (MTT) Hub: Four Transaction Translators– Four Asynchronous Endpoint Buffers Per Transaction Translator

• Supports Battery Charging– CDPMode(Upstream Port Connected)– DCPMode(Upstream Port Unconnected)– DCPModeComplies with Chinese Telecommunications Industry Standard YD/T 1591-2009– D+/D- Divider Mode

• Supports Operation as a USB 3.0 or USB 2.0 Compound Device

• PerPort or Ganged Power Switching and Over Current Notification Inputs

• OTPROM,Serial EEPROM or I2C/SMBus Slave Interface for Custom Configurations:– VIDand PID– Port Customizations– Manufacturer and Product Strings (not by OTP ROM)– Serial Number (not by OTP ROM)

• Application Feature Selection Using Pin Selection or EEPROM/ or I2C/SMBus Slave Interface

• Provides 128-Bit Universally Unique Identifier (UUID)

• Supports On-Board and In-System OTP/EEPROM Programming Via the USB 2.0 Upstream Port Personal Computer USB1.x Connection USB2.0 Connection

• Single Clock Input, 24-MHz Crystal or Oscillator

• NoSpecial Driver Requirements; Works Seamlessly on any Operating System with USB Stack Support

• 64-Pin QFN Package (RGC)

Applications

• Computer Systems

• Docking Stations

• Monitors

• Set-Top Boxes

Description

The TUSB8041 is a four-port USB 3.0 hub. It provides simultaneous SuperSpeed USB and high speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports.

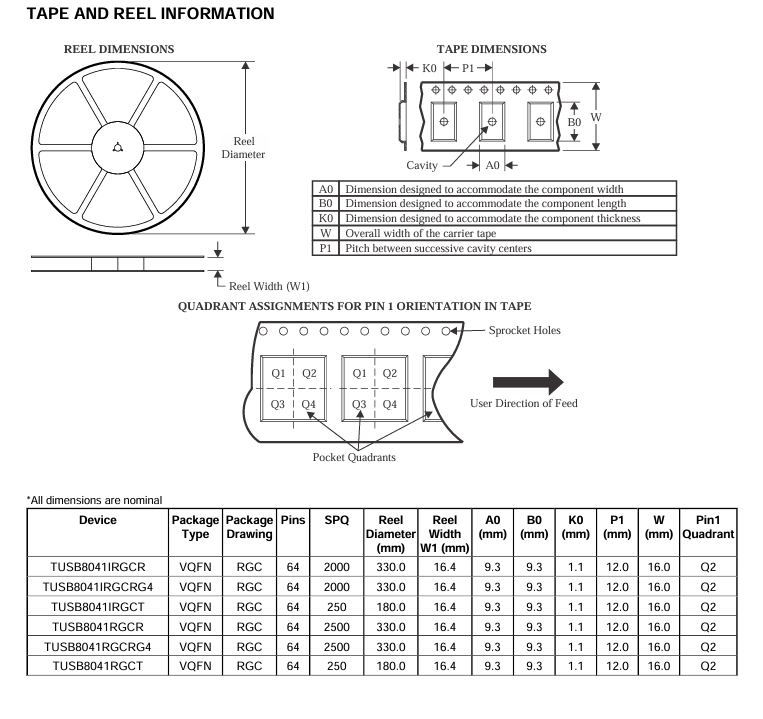

INFORMATION

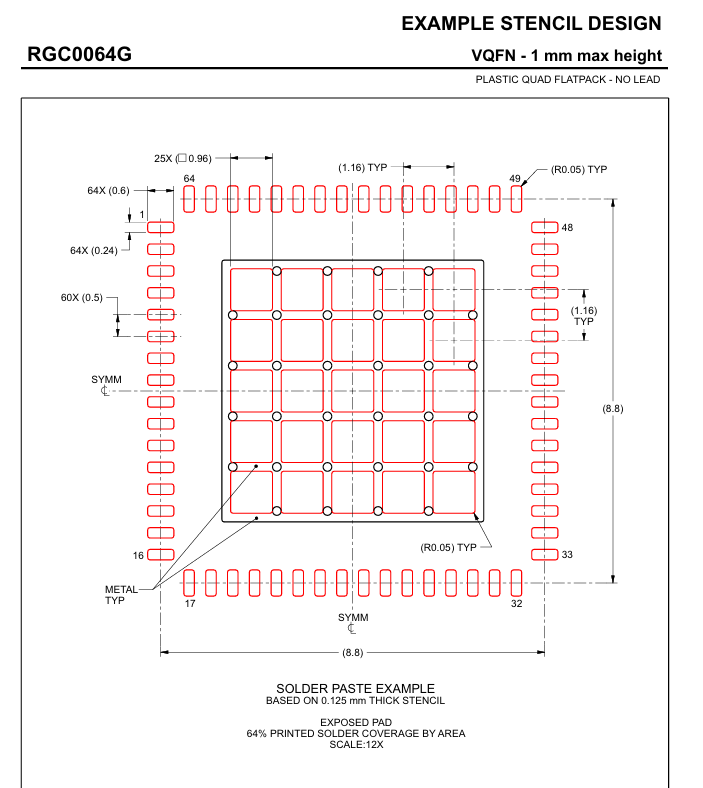

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc

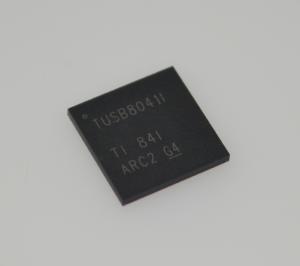

TUSB8041IRGCR 4-Port USB 3.0 Hub with 5Gbps Speed Low Power Compact QFN Industrial Temp ESD Protection & Plug-and-Play Images
