IR2104STRPBF High-Voltage Half-Bridge Driver with 600V Rating 200mA Output Fast Switching Low Quiescent Current Robust SOIC-8 Package & UVLO Protection
Features
• Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage
dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout
• 3.3V, 5V and 15V input logic compatible
• Cross-conduction prevention logic
• Internally set deadtime
• High side output in phase with input
• Shut down input turns off both channels
• Matched propagation delay for both channels
• Also available LEAD-FREE
Description
The IR2104(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which
Applications
Motor Drive
Brushless DC (BLDC) motor drive
Stepper motor drive
Servo motor control
Power & Inverters
DC-AC inverters (e.g., solar inverters, UPS)
Switch-mode power supplies (SMPS)
High-frequency power conversion
Industrial Automation
Industrial motor control
Robotic drive systems
Solenoid valve driving
Automotive Electronics
Electric vehicle (EV) motor control
On-board chargers (OBC)
Electric power steering (EPS)
Consumer Electronics & Appliances
Inverter air conditioner/refrigerator compressor drive
Power tools (e.g., drills, cutters)
Drone ESCs (Electronic Speed Controllers)
INFORMATION
| Category | | |
| Manufacturer | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | | |
| DigiKey Programmable | | |
| Driven Configuration | | |
| Channel Type | | |
| Number of Drivers | | |
| Gate Type | | |
| Voltage - Supply | | |
| Logic Voltage - VIL, VIH | | |
| Current - Peak Output (Source, Sink) | | |
| Input Type | | |
| High Side Voltage - Max (Bootstrap) | | |
| Rise / Fall Time (Typ) | | |
| Operating Temperature | | |
| Mounting Type | | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | | |
| Base Product Number | |

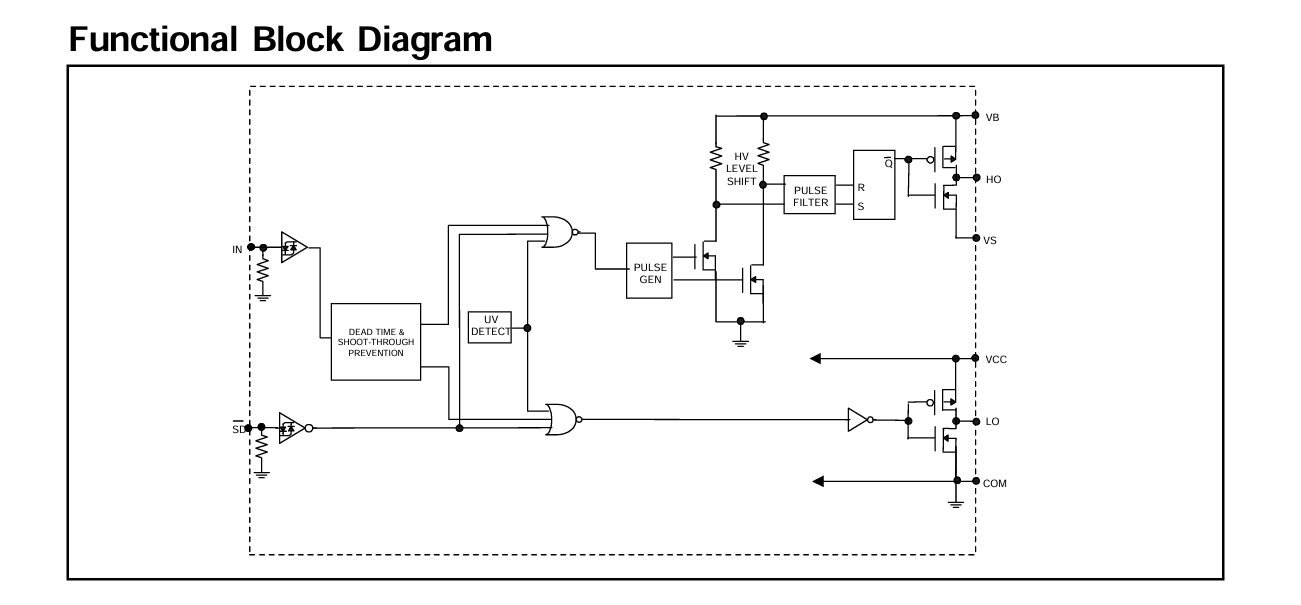

Drawing
Our advantage :
- High quality products --- our offers are 100% new and original, ROHS
- Competitive price --- good Purchase channels with good price.
- Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
- Adequate inventory --- With the support of our strong Purchasing team,
- Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
|
|

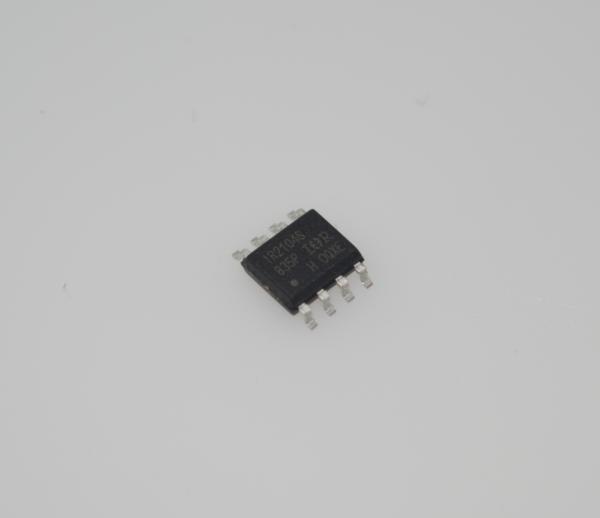

IR2104STRPBF High-Voltage Half-Bridge Driver with 600V Rating 200mA Output Fast Switching Low Quiescent Current Robust SOIC-8 Package & UVLO Images
|
